Over 1000 Frequencies
The Falcon F5 Plus locator is the most versatile and advanced HDD locating system available in the world.
Wideband Range: 4.5 – 45 kHz
Sub KiloHertz Range: 0.33 – 0.75 kHz
Depth Range: 180 ft
Data Range: 220 ft
DIGITAL CONTROL INC HDD LOCATING SOLUTIONS
Raising the bar
DCI revolutionized the HDD industry with the introduction of the DigiTrak Locating system in 1991. The unique features of the new system provided greater accuracy for measuring the depth and location of the drillhead than prior systems.
FREQUENCY OPTIMIZATION
MULTI POWER TRANSMITTERS
REAL-TIME DOWNHOLE FLUID PRESSURE DATA
SUB-K REBAR TRANSMITTERS
FALCON RECEIVERS
Worry Free. Easy to Use. Versatile.
The all New DigiTrak Falcon+ HDD locating systems are designed with you in mind. We’ve made it easier and faster to take full advantage of the benefits of Falcon Technology. Improvements that mean your crews can train faster, drill deeper and finish more jobs than the competition.
- Ultra-tight Tail
- Exceptionally Compact
- Easy to Transport
- Flexible & Stable
- High-performance Engine
- Advanced Hydraulic System
- Fast & Easy Maintenance
FALCON F5+

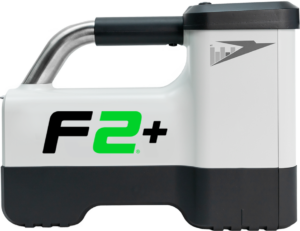

FALCON F2+
Up to 160 ft (48m) Depth / 200 ft (61m) Data
Battle active interference with our simple yet sophisticated F2 system. Increase bore efficiency and reduce downtime, saving thousands of dollars per year.
Wideband Range: 4.5 – 45 kHz
Depth Range: 160 ft
Data Range: 200 ft

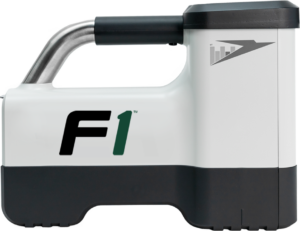

FALCON F1
100/125 ft (30/38m) Depth
Designed for projects such as house drops from street to home, the easy to use and friendly priced F1 uses a single band to combat active interference.
Single-band Range: 9-13 kHz
Depth Range: 100 ft
Data Range: 125 ft
TERATRAK
The Wheel, Reinvented.
A major challenge of today’s bore plans is that they often become irrelevant a few rods in.
This TeraTrak R1 generates continuous job site topography and gives you the vital date to create and update your bore plan on-the-fly, so it never becomes obsolete.
A New Dimension in Bore Planning
- Visualize underground hazards
- Target waypoints to drill with more confidence
- Rugged, reliable and waterproof hardware
- High Accuracy (+/- 2 in over 500 ft)
- Designed to integrate with the DCI Product Suite
DOES THE MATH FOR YOU
Real-time terrain mapping allows you to easily create a continuous topography marked with utilities and waypoints
- Measure and map precise elevations and distances along your drill path
- Use in areas where GPS doesn’t work
FEWER RE-DRILLS
TeraTrak™ R1 helps you solve bore plan problems on-the-fly.
- No Bent Rods
- Determine rig placement with a rod-by-rod entry plan
- Create point-to-point bore plans as you go
COST SAVING
As you walk along the projected bore path, the R1 builds a terrain map in real-time. You can add utilities, waypoints, pins and notes to share with your crew or customers.
- Faster Bores and Cost Saving
- Export TeraTrak data for use in bore planners
TRANSMITTERS
QUALITY. DURABILITY. TRUSTED PERFORMANCE.
For 30 years DCI has been the leader in transmitter design and manufacturing. That means more durability, better signal transmission, and backed the industry’s best extended warranty: 5 year/750 hours.
FALCON F5+
FALCON F2+
FALCON F1
FALCON F5
FALCON F2
F5
F SERIES
SE
DUCTRACK
REMOTE DISPLAYS
THE ULTIMATE HDD COMMAND CENTER
The touchscreen Aurora remote display is the ultimate command center designed with HDD Operators in mind. Faster data speed, longer range, and packed with everything you need to safely and easily navigate the underground.
QUALITY. DURABILITY. TRUSTED PERFORMANCE.
For 30 years DCI has been the leader in transmitter design and manufacturing. That means more durability, better signal transmission, and backed the industry’s best extended warranty: 5 year/750 hours.
AF8
Over 1000 Frequencies
The Aurora 8.4-in display is available freestanding or panel-mounted. The robust, color touchscreen supports LWD Live, Target Steering, and other applications that increase jobsite productivity.
Display Details: 8.4-in Touchscreen
Telemetry Range: 1800 ft
AF10
Up to 160 ft (48m) Depth / 200 ft (61m) Data
The Aurora freestanding 10.4-in display is a color touchscreen with on and off-rig docking stations. This rugged display supports LWD Live, Target Steering, and other applications that increase jobsite productivity.
Display Details: 10.4-in Touchscreen
Telemetry Range: 1800 ft

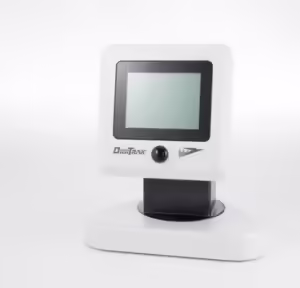

COMPACT DISPLAY
100/125 ft (30/38m) Depth
The FCD is a rugged, entry-level display. A good choice for pit launchers and mini drills, its range also allows for longer shots.
Power Source: Li-ion or NiMH battery pack
Display Type: LCD
Telemetry Range: 1000 ft (305m)
LWD LIVE

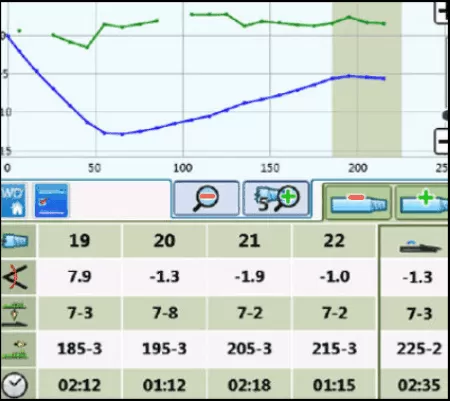

LWD Live lets you graph rod-by-rod details of the bore in real time. Capture rod number, pitch, depth, and duration of each rod drilled. Make better drilling decisions.
TARGET STEERING

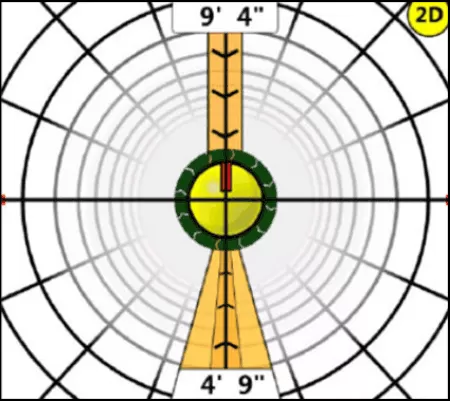

The Target Steering app lets locating specialists place the Falcon receiver ahead of the drill head and create a “steering target”. Use target steering to increase productivity in everyday drilling scenarios and in tough situations where walk-over locating is unsafe or impractical.
STRIP CHART

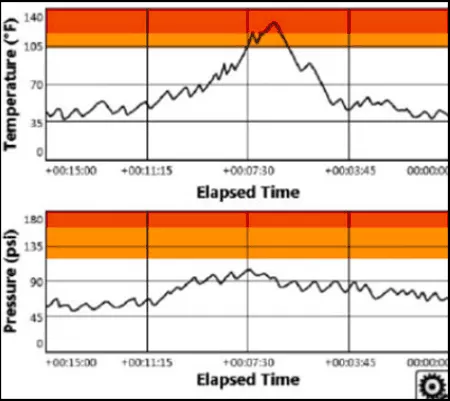

The Aurora Strip Chart app lets you monitor temperature and fluid pressure data over time. See this data on a graph that includes the warning and critical levels specified in alarm settings on the main menu.
FREQUENCY CHANGE

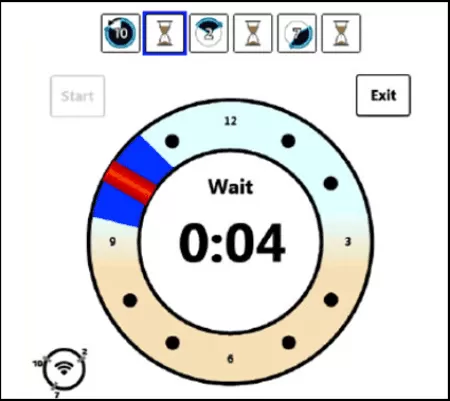

The Frequency Change app guides the drill rig operator through the process of changing the transmitter frequency band mid-bore using different rotation sequences. Get step-by-step guidance on changing between bands using the familiar 10-2-7 method or the newer Repeating Roll Sequence (RRS3) method.
